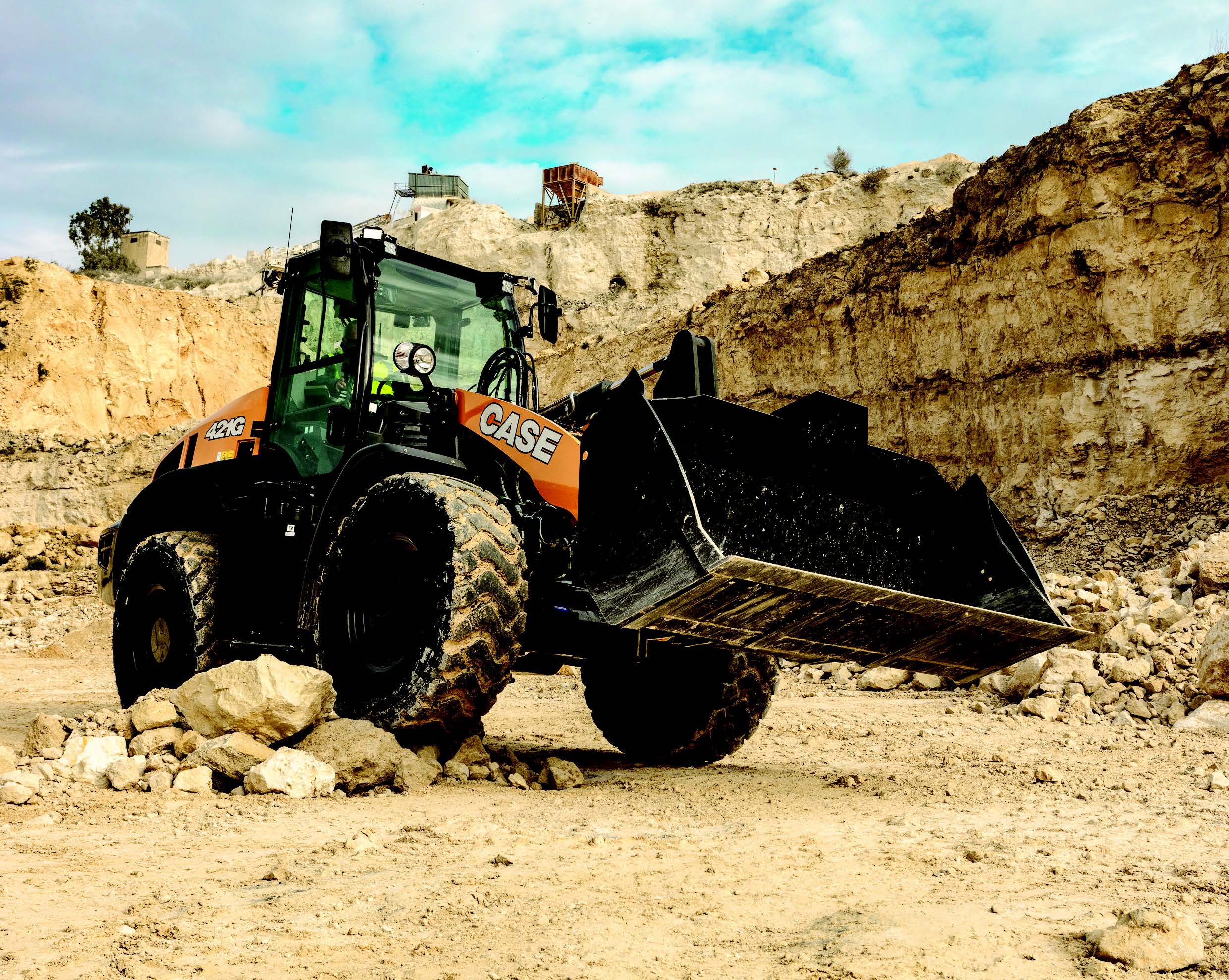

CASE Construction Equipment is filling the gap between its compact and medium-size wheel loaders, with the launch of the 421G. With an operating weight of 8970kg, the machine has been designed to work with a 1.5m3 standard bucket, or a 1.7m3 light material bucket.
Powered by a 3.6-litre FPT turbocharged diesel engine, the 421G boasts a rated power of 72kW (97hp) and a peak power of 84kW (112hp) at 2000rpm. This is backed by a strong 453Nm of torque. The engine utilises FPT’s proven SCR-T aftertreatment system to minimise emissions and the machine is equipped as standard with an eco operating mode and with cruise control, to reduce fuel consumption and emissions.
The EU Stage V engine drives through a two-speed ‘shift-on-fly’ hydrostatic transmission, that provides a seamless transition between the two drive ranges, delivering a 40km/h maximum speed with a 20 km/h speed limiter as an option and the transmission has a creep setting as standard. The axles are heavy-duty, with standard limited slip differential front and rear and an optional 100% differential lock.
Loads of performance
Though working within compact overall dimensions, the 421G has a straight tipping load with a standard bucket of 6500kg, with a full turn tipping load of 5500kg. When equipped with pallet forks, that full turn tipping load is 4200kg. Payload with forks is a competitive 3360kg and the lift arms have a hinge pin height on 17.5 R25 tyres of 3707mm. With a bucket, the breakout force is 7161kg and the machine comes with boom and bucket setting modes and with boom float as standard.
The 421G offers a comfortable cab with improved visibility over F-Series compact range machines. The front console is lower, to provide an improved view of the bucket or attachment. There is also increased glazing to both the front and the right-hand side of the cab. A secondary fully-opening right-hand door with sliding window, is standard, while external steps on the right are optional.
The cab delivers plenty of space for the operator and the joystick and instrumentation are seat-mounted, to ensure full visibility during operation. There is a colour display with navigation encoder, for machine operating data and for the standard rear-view camera. Operators will also welcome the USB charging port and phone holder.
Manufacturer takes on 100hp segment with new 421G wheel loader that is said to offer the agility of compact machines and the power and performance of its larger siblings. CPN looks at the CASE.
SPECIFICATIONS: CASE 421G wheel loader
TRANSMISSION –
- Two-speed “shift-on-fly” transmission
- Maximum travel speed km/h 40
- Maximum travel speed with optional speed limiter km/h 20
AXLES –
- Heavy duty with limited slip differential (front and rear) Standard
- Heavy duty with 100% differential lock (front and rear) Optional
- Rear axle oscillation angle 10°
TYRES –
- Standard size 17.5 R25 L3
- Optional size 15.5 R25 L3
BRAKES –
- Service brake Wet service brake on front and rear axle
- Parking brake Spring applied hydraulically released (SAHR)
HYDRAULICS –
- Loader control valve Closed-center circuit. Electro-hydraulic control
- Steering Two hydrostatic cylinders controlled by a hydrostatic steering gear with relief on steering line and flow control
- Loader controls Oil supplied to the integrated steering/loader hydraulic system by a variable displacement pump
- Pump type Variable displacement pump with closed center
AUXILIARY HYDRAULICS –
- Standard oil flow l/min 95
- Max oil flow l/min 125
- Max pressure bar 200
FLUIDS CAPACITIES –
- Fuel tank l 118
- DEF (Ad Blue) tank l 21.5
- Engine coolant (water/antifreeze) l 13.9 + 13.9
- Engine oil l 7
- Hydraulic oil tank l 74
- Front and rear axles l 7.5
- Wheel hubs (each) l 1.4
- Gearbox l 1.8
Attachment compatibility
The closed centre hydraulic system uses a variable displacement pump with load sensing and flow sharing capabilities for easy combined movement of the lift arms and bucket tilt cylinder. High flow hydraulics deliver a maximum flow of 125 litres/min with a maximum pressure of 220bar, making this compact machine an ideal tool carrier for a range of powered attachments. The operator can also adjust hydraulic flow to suit the application.
The 421G is the first CASE wheel loader in the 100hp segment and the machine has been designed to deliver the performance and productivity that CASE customers have come to expect from the larger G-Series models. With a comfortable operator’s cab, powerful hydraulics and strong lifting performance, the 421G is an ideal loader and tool carrier for a host of construction applications.
Back up
The new 421G is covered by the complete range of CASE connected and non-connected after-sales solutions, that ensure increased working without unexpected maintenance costs and downtime. CASE customers will benefit from connectivity that comes as standard with the 421G, tracking and fleet management tools allowing customers to remotely monitor their equipment in use. CASE SiteConnect directly alerts dealers about machine performance and operating conditions, allowing proactive maintenance, quicker repairs, as well as preventive service.
In addition, the 421G benefits from CASE Care – a planned maintenance programme with genuine parts, lubricants and qualified technicians, plus a range of services such as CASE Protect extended warranty and CASE Fluid Analysis, to ensure uptime and avoid unexpected operating costs and optimised profitability.
